4-Way Cassette Fan Coil Unit SAF-CF300

Brand
Suzuki
Model
SAF-CF300

Description

  • Available in seven models with airflow rates ranging from 300 to 1,200 CFM.
  • Concealed ceiling-mount design optimizes room space, making it suitable for residential and office environments.
  • Available in Setting or Auto operation modes, featuring four-way (one-way) airflow, high-velocity circulation, and multiple wind speed settings.
  • Single-piece molded shell for a refined appearance.
  • Specialized insulation design ensures high thermal efficiency and prevents condensation on the shell.
  • Integrated high-lift drain pump for optimized water drainage and simplified installation.
  • Extended-life air filter with a service interval twice as long as standard filters; maintenance-free.
  • The 3D helix air blade ensures sufficient airflow, reduces unit thickness, and significantly lowers operational noise.
  • The plastic drip tray is constructed from a combination of foam-PS and technical plastic with a thickness of 1 mm to prevent leakage.
  • The integrated hook design facilitates efficient panel installation and removal.
  • Fresh air intake design optimizes the delivery of outdoor air to maintain indoor air quality.
  • Auto-restart function
  • Standard remote controller and optional wired controller

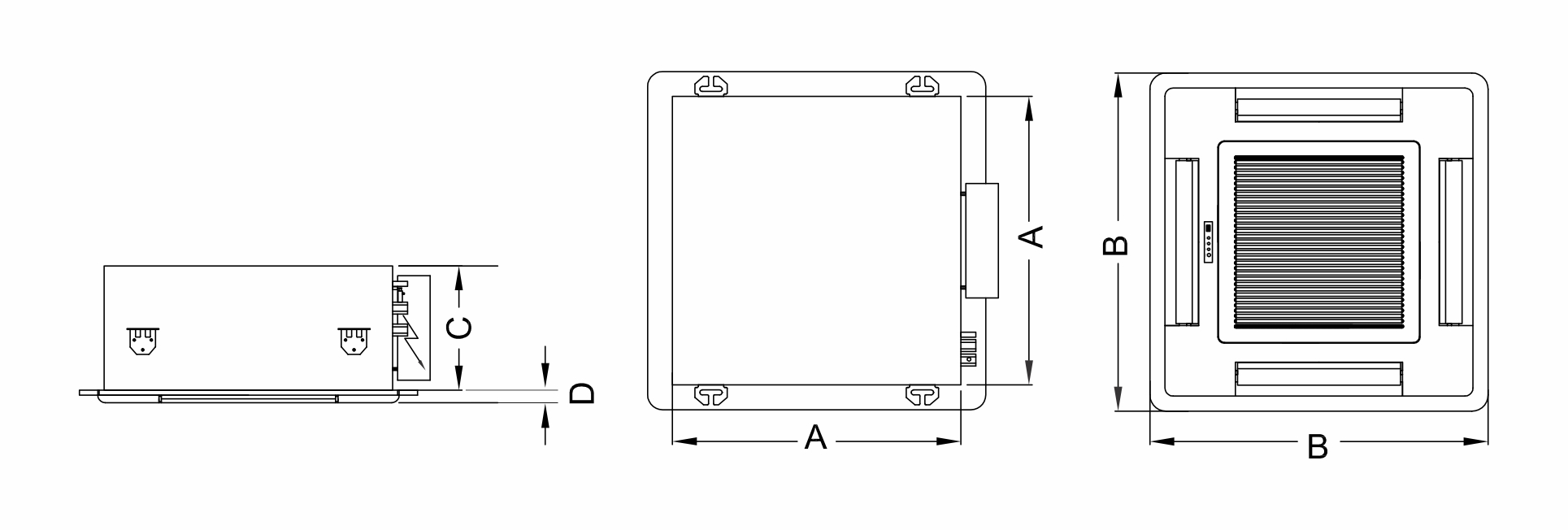

Technical schematic showing side, bottom, and top views of a square device with dimensions A, B, C, and D

Dimensions (mm)

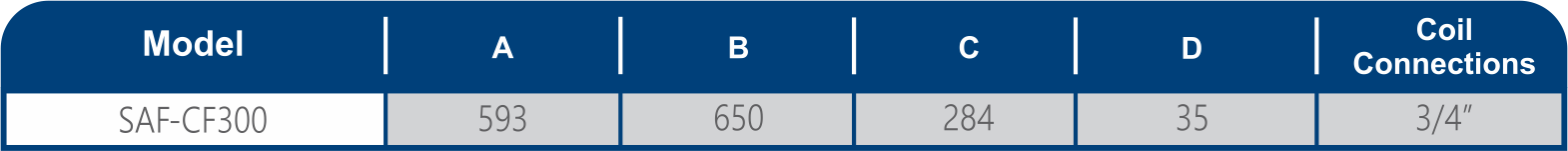

Technical specifications table for model SAF-CF300 showing dimensions A, B, C, D and 3/4 inch coil connections
