Ducted Fan Coil Unit 4-Pipe SAF-D600 R2/L2

Brand
Suzuki
Model
SAF-D600 R2/L2

Description

  • Available in eight models with air flow rates ranging from 600 to 2,000 CFM.
  • Heavy-gauge galvanized casing
  • High-efficiency forward-curved fan for quiet operation
  • Low power consumption
  • High-efficiency coil with corrugated fins
  • Insulated heavy-gauge drain pan
  • Rapid Electrical Connections

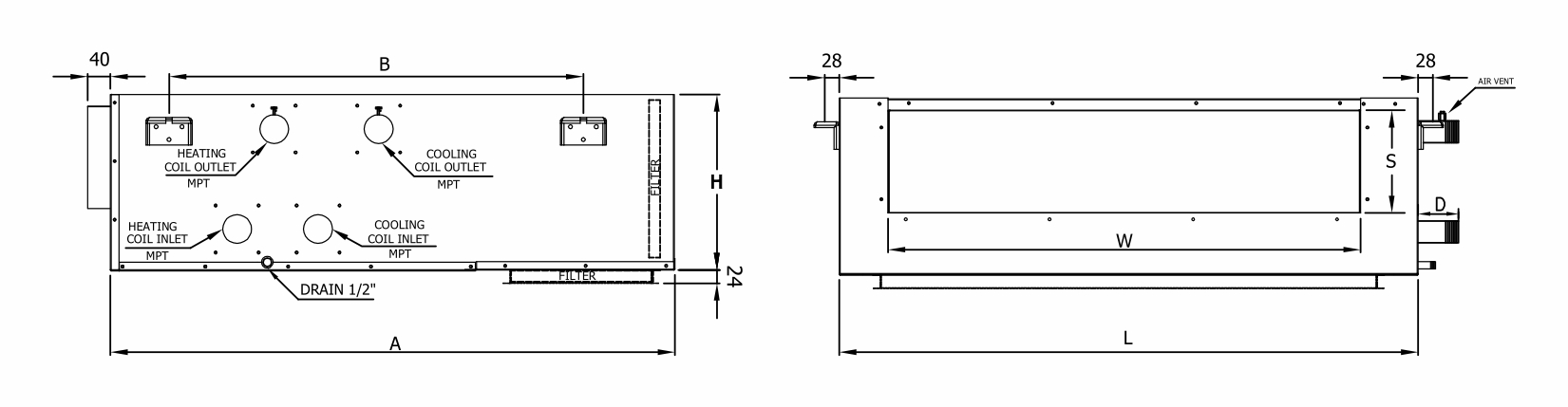

Technical line drawing showing dimensions and connection points for heating and cooling coils, including drain and filter loc

Dimensions (mm)

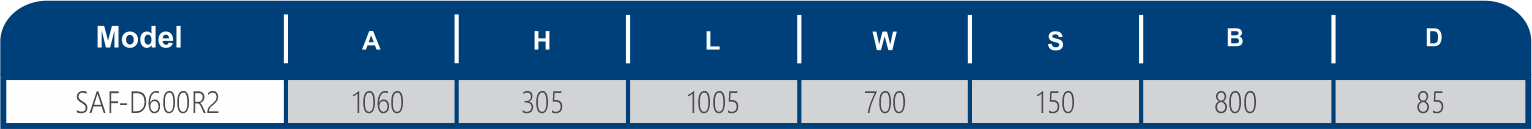

Technical specifications table for model SAF-D600R2 showing dimensions A, H, L, W, S, B, and D
